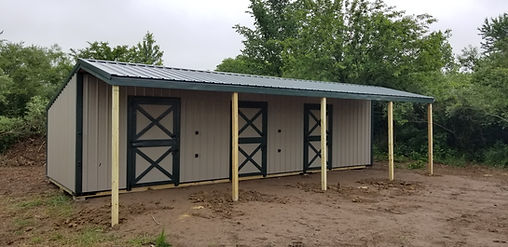

Dutch Door Horse Barns

  • Comes with shed style roof.
  • Has steel two hooks on every corner.
  • Comes with 2′ roof overhang in front.
  • 2″ x 4″ double wall studs 48″ on center.
  • 2″ x 8″ headers above door opening.

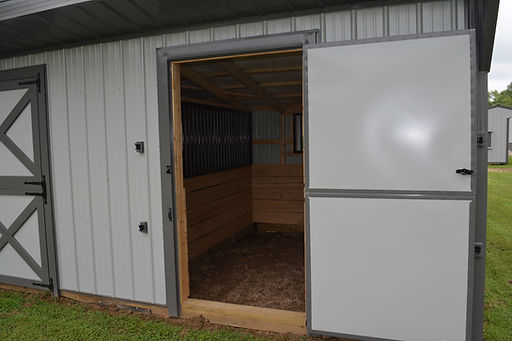

  • 4′ x 7′ metal double dutch doors on the front of each stall
  • 40 year 29 gauge metal siding and roofing in your choice of 22 colors which can be seen by clicking on the metal colors link at the top of the page.
  • 2 stalls with 4′ swing open style horse stall doors with steel horse stall grills at the top.
  • 2″ x 6″ roof rafters 48″ on center
  • 30″ x 36″ windows with steel grill window guards in each stall
  • Treated 6″ x 6′ runners not 4″ x 4″ or 4″ x 6″ like our competitors.
  • 1″ x 8″ rough cut oak or ash kick boards around the entire inside wall 40″ high on top of the 6″ x 6″ runners.
  • Has built in wood and steel grill stall dividers between stalls
  • Width: Outside edge of front runner to out side edge of rear runner 10′,12′, or 14′.
  • Length: Outside edge of end runner to outside edge of opposite end runner 12′ to 40′.
  • Height: From ground to metal roof on front 113 inches.
  • Height: From bottom of front runner to bottom of door header 107 inches.
  • Height from ground to metal on roof in back wall is 86 inches.
10′ Wide Pricing – Delivery FREE within 100 miles over is $4.00 per mile
10 x 10 – One 10 x 10 Stall – $3019
10 x 12 – One 10 x 12 Stall – $3113
10 x 16 – One 10 x 16 Stall – $3554
10 x 20 – Two 10 x 10 Stalls – $3995
10 x 24 – Two 10 x 12 Stalls – $5475
10 x 30 – Three 10 x 10 Stalls – $7486
10 x 32 – Two 10 x 16 Stalls – $7985
10 x 34 – Two 10 x 17 Stalls – $8484
10 x 36 – Three 10 x 12 Stalls – $8677
10 x 40 – Four 10 x 10 Stalls – $12674
12′ Wide Pricing – Delivery FREE within 100 miles over is $5.50 per mile
12 x 10 – One 12 x 10 Stall – $3510
12 x 12 – One 12 x 12 Stall – $3583
12 x 16 – One 12 x 16 Stall – $4668
12 x 20 – Two 12 x 10 Stalls – $5753
12 x 24 – Two 12 x 12 Stalls – $5846
12 x 30 – Three 12 x 10 Stalls – $8205
12 x 32 – Two 12 x 16 Stalls – $8752
12 x 34 – Two 12 x 17 Stalls – $9299
12 x 36 – Three 12 x 12 Stalls – $9789
12 x 40 – Four 12 x 10 Stalls – $13664
14′ Wide Pricing – Delivery FREE within 100 miles over is $7.00 per mile
14 x 16 – One 14 x 16 Stall – $6224
14 x 20 – Two 14 x 10 Stalls – $7671
14 x 24 – Two 14 x 12 Stalls – $7795
14 x 30 – Three 14 x 10 Stalls – $10940
14 x 32 – Two 14 x 16 Stalls – $11670
14 x 34 – Two 14 x 17 Stalls – $12399
14 x 36 – Three 14 x 12 Stalls – $13052
14 x 40 – Four 14 x 10 Stalls – $18219
 Options Available
  • 4 anchors installed at delivery – $240
  • 4′ wide tack room add – $1500
  • 6′ wide tack room add – $1700
  • 8′ wide tack room add – $2000
  • 10′ wide tack room add – $2300
  • 12′ wide tack room add – $2600
  • 14′ tack room add – $2900
  • Can Not do Tack Rooms on 40′ Barns
  • 1′ taller all the way around add – 20%
  • Sky lite in roof – $75 per panel
  • Wooden Floor – $6.50 per square foot
  • 30″ x 36 ” window with steel grill window guard add – $150
  • 18″ x 36″ drop down ventilation window – $225
  • 36″ x 10′ drop down ventilation window – $450
  • Peaked style roof add – 20%

Site Prep

95% of all the horse barns and livestock shelters we deliver we set directly on the ground. The ground needs to be fairly level for your barn or shelter to sit good. You can also grade or level your site, have a stone base, or even pour a concrete pad. The ground work is up to you and we will place the barn or shelter on whatever base you provide. We need 2 feet of room around both sides of the building and 14 foot of overhead clearance for delivery. We suggest you face your barn or shelter front away from the prevailing winds in your area. We also suggest you purchase the added protection of anchors to be installed at the time of delivery.
